Temp Towers In Bambu Studio

Temp Towers are a powerful tool to tune a new material profile to get the exact results you are looking for given your project requirements. They will save time and filament when tuning and prototyping.

Start with an STL or .3MF like this one chose the appropriate temp range for the material you are tuning.

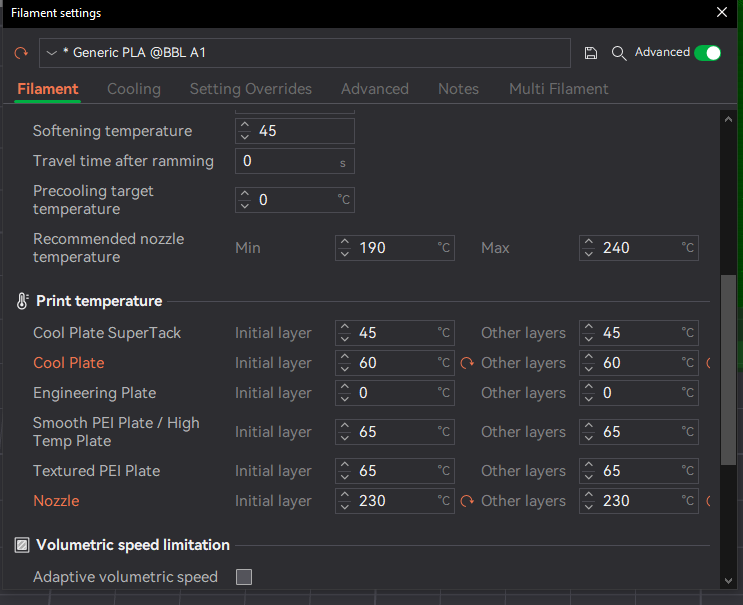

Make sure your material profile is setup to have the initial layer set to the proper temp

Then slice the model and move to preview on the right hand side use the layer preview scroll to find the first layer of the next temp section (example modle layer 44)

Right click to insert custom G code.

Then type in M104 S225 M104 SXXX will set the extruder temp in °C to the numbers following the S

Repeat up the temp tower to set desired temps.

Temp towers have many features to help you evaluate the performance of your machine with the material on different things such as long bridges, steep overhangs, thing canonical features.

All of these features will allow you to see how slight changes in temperature change how the quality of these features turn out, and what the best temp will be for your projects requirements.
